Introduction

Every handcrafted piece of men’s jewelry—whether a bold silver signet ring, a detailed pendant, or a chain link bracelet—begins long before it reaches your hand. Today’s modern jewelry-making process combines computer-aided design (CAD) technology with centuries-old artisanal techniques such as mold making and lost-wax casting.

In this article, we’ll walk through the entire process of how a men’s jewelry design moves from a digital sketch on a computer screen to a polished sterling silver accessory.

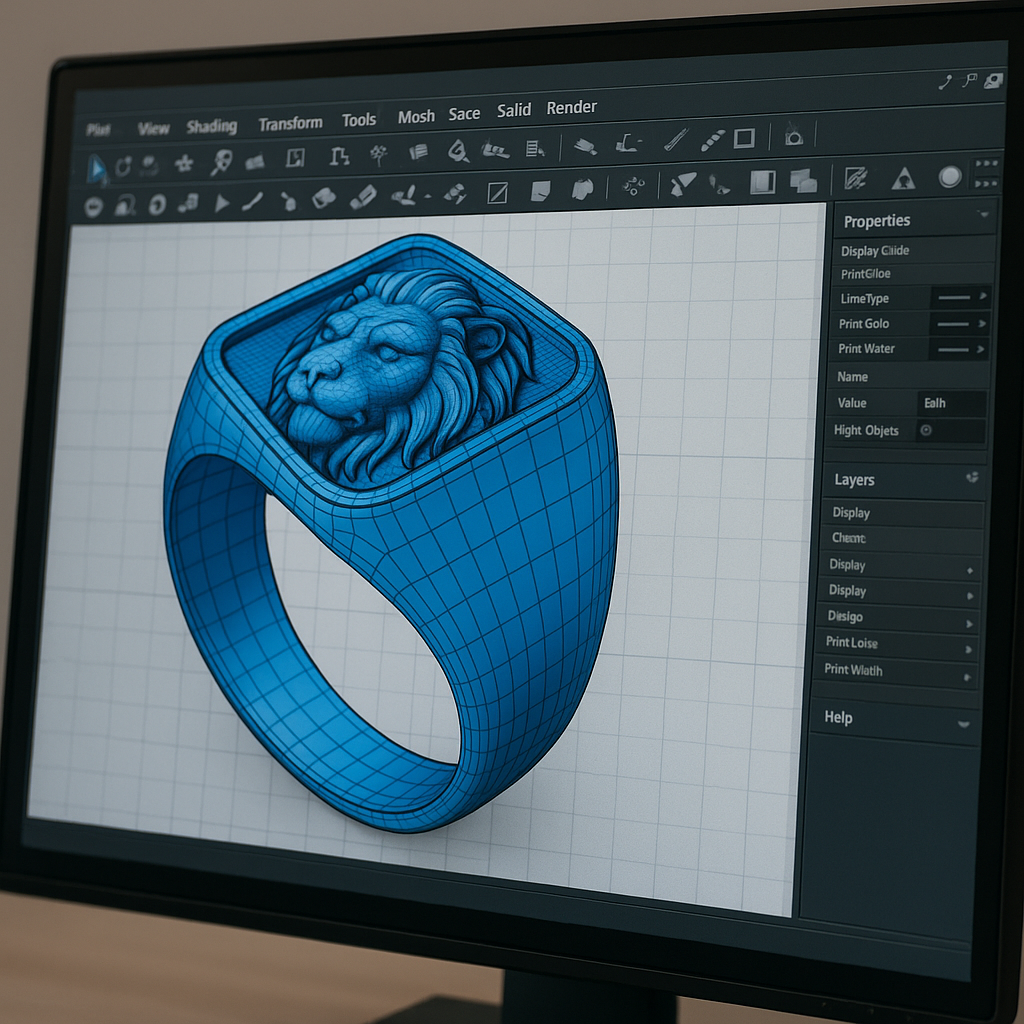

Step 1: Designing the Jewelry with CAD

The journey starts with creativity and technology. Jewelers now use CAD software (like RhinoGold, Matrix, or Blender) to bring their visions to life.

• 3D Modeling: The design of a ring, pendant, or bracelet is built digitally in three dimensions. This allows jewelers to test proportions, adjust engravings, and refine details like textures or gemstone settings.

• Precision: CAD ensures every curve, engraving, and motif is exact—perfect for detailed men’s jewelry inspired by mythology, history, or geometric patterns.

• Visualization: Rendered 3D models help clients see the final piece before production even begins.

Step 2: Creating a Wax Model

Once the digital file is complete, the design is sent to a 3D printer or a wax milling machine to create a wax prototype.

• The wax model serves as the physical master of the digital design.

• For men’s jewelry, thicker structures (like bold ring bands or heavy pendants) require precise wax detailing to ensure strength.

Step 3: Making the Jewelry Mold

To produce multiple pieces, jewelers create molds of the wax model. Two common methods are:

1. Silicone Molds – Flexible, easy to use, and perfect for capturing fine details of men’s rings and pendants.

2. Vulcanized Rubber Molds – Durable and heat-pressed, commonly used for larger-scale production and wax injections.

These molds allow consistent reproduction of the jewelry design while preserving every tiny engraving.

Step 4: Lost-Wax Casting Process

The most traditional and widely used method in jewelry production is lost-wax casting.

1. A wax model (from Step 2 or from mold injection) is attached to a “wax tree.”

2. The tree is placed inside a metal flask and covered with plaster (investment material).

3. Once hardened, the flask is heated in a kiln to melt the wax, leaving behind a negative cavity.

4. Molten silver (925 sterling) or gold is poured into the cavity, replacing the wax.

This process creates a perfect replica of the original model in precious metal.

Step 5: Cleaning and Polishing

Once cast, the jewelry piece is far from finished. It goes through multiple refining steps:

• Removing sprues: The extra metal channels from casting are cut off.

• Filing and sanding: The surface is smoothed, and details are sharpened.

• Polishing: The piece is buffed until it shines like a mirror.

• Oxidizing or Texturing (optional): Many men’s rings and pendants use oxidation to highlight engravings, or brushed finishes for a rugged look.

Step 6: Stone Setting and Assembly

For designs that include gemstones, skilled artisans carefully set stones like onyx, tiger’s eye, or lapis lazuli into the jewelry. Chains, clasps, or additional parts are also assembled at this stage.

Step 7: Final Quality Control and Packaging

Every finished men’s jewelry piece undergoes strict quality checks to ensure it meets design specifications and durability standards. Finally, it’s packaged—often in branded boxes with silver authenticity certificates—ready to reach its new owner.

Conclusion

From digital CAD sketches to mold making, from lost-wax casting to hand finishing, each men’s ring or pendant carries a story of both innovation and tradition. The blend of modern technology and timeless craftsmanship ensures that every piece is not only stylish but also durable and meaningful.

This meticulous process transforms an idea into a wearable piece of art—a bold statement of identity, history, and design.
